Products
>
Horizontal Centrifugal Pump
> CN ANSI Process Pump
|

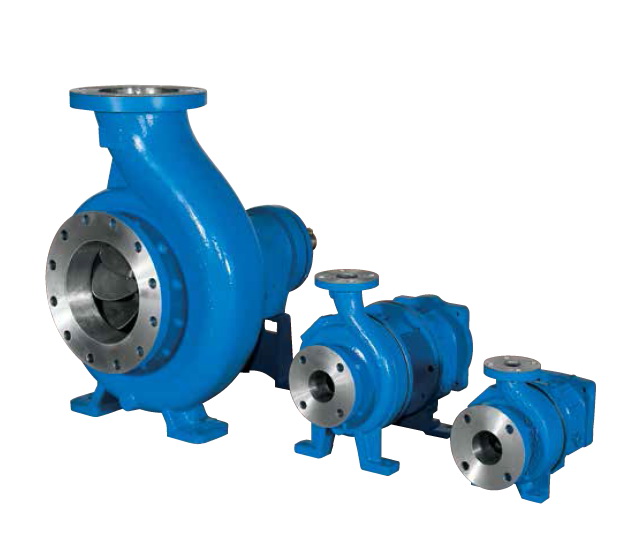

ANSI Process Pump Equivalent to Goulds 3196 ANSI Process Pump
 |
ANSI Process Pump equivalent to Goulds 3196 ANSI Process Pump
ANSI process pump and parts can replace the most current/common ANSI pumps including: Goulds 3196, Peerless 8196, Summit 2196, Griswold 811, Aurora 3500, DURCO Mark 3 and others.
ANSI process pump and parts can replace the most current/common ANSI pumps including: Goulds 3196, Peerless 8196, Summit 2196, Griswold 811, Aurora 3500, DURCO Mark 3 and others.
Introduction:
1. CN series ansi process pump is ANSI B73.1 M standard chemical process pumps
2. CN series ansi process pump is fully interchangeable with Goulds 3196 series chemical process pumps
3. There are four frames, i.e S, M,L and XL
4. Carbon Steel, Cast Iron,304SS,316SS, CD4MCU ,Nickel and Hastelloy C material are available.
Technical data:
Pump size: 1"-10"
Capacity: up to 5800gpm
Head:up to 700ft
Advantages:
1. Comply with ANSI B73.1M standard
2. Open type of impellers
3. High efficient & energy saving
4. Wide operating range
5. Robust structure
6. Can be fitted with Single Mechanical Seal,Double Mechanical Seal and Cartridge Mechanical Seal
|
|
|
|
||||||||
|
|
|
