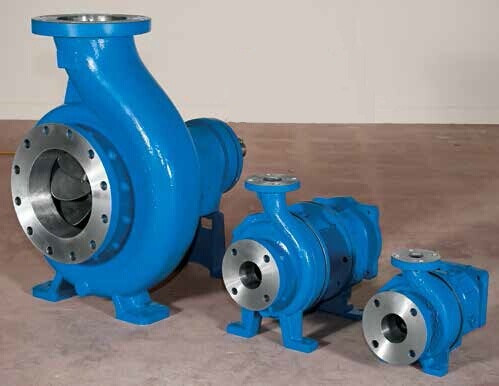

ANSI Chemical Process Pump | CN Series

ANSI chemical process pump, CN type complys with ASME/ANSI B73.1M standard, so all the components are the same as european ANSI process pump parts, such as Goulds 3196, Peerless 8196, Summit 2196, Griswold 811, Aurora 3500.

Besides extended pump life, its' back pull-out design, external impeller adjustment and maximum interchangeability simplify the maintenance. Fully open impeller, full 50/60 Hz coverage and various sizes make hydraulic performance optimum. Because ANSI Chemical Pump adopts the full open impeller, so this chemical pump can be used for all chemicals and industrial water with solids and suspensions.

CN type ANSI chemical process pump is the best choice for chemical, petrochemical, pulp & paper, primary metals, food & beverage, general industries and so on. Both bare shaft pump and pump package unit with base plate and motor are available. Besides cast iron,SS316 and SS304,various material constructions can be offered according to requirement also.

The ANSI chemical process pump has become the standard for applications requiring corrosion resistant pumps. Our ansi process pump designs offer a wide range of capabilities. Full ranges are from our small size to large size chemical process pump series. So, this broad range of ansi chemical pump capabilities is unmatched in the industry making us the leader in ansi process pump technology home and abroad.

Specifications:
Size: 1″-10″
Q: max 1400 m3/h
H: max. 142 m
Media temp: -25°C~+200°C
System pressure: 25 bars

Applications:
Petrochemical
Paint
Refineries
Oil and Gas
Hot Oil
Ethanol Plant
Food Plant
Sugar Industries
Pharmaceuticals
Effluent Treatment Plant
Waste and water treatment Plant and so on

Designation:
CN 2x3-6:
Imp dia is 6”
Outlet is 2"
Inlet is 3"
CN is series code

Material Available:
Cast Iron
Ductile Cast Iron
Carbon Steel
SS304 (L)
SS316 (L)
Alloy 20
Titanium (TA2)
CD4MCu
Nickel 201 or 200
Hastelloy B&C and so on

Mechanical Seal Type:
Single Mechanical Seal
Double Mechanical Seal and so on

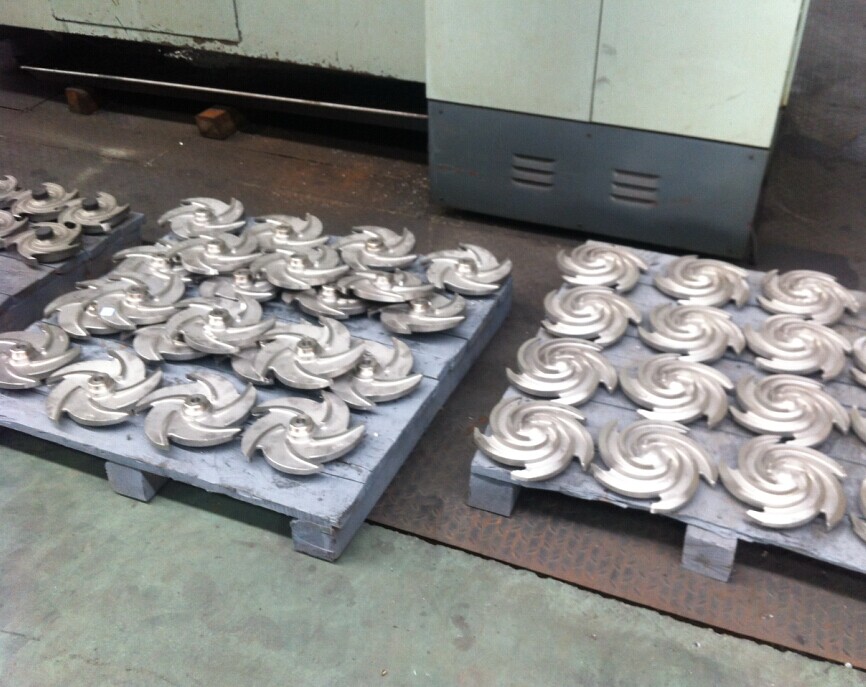

Impeller Type:
Full Open type

Bearing Type:
NSK,SKF and so on

Frame Type:
S, M,L,XL

Designed and Manufactured Standard:
ANSI/ASME B73.1

Flanges Standard:
ANSI B16.5 150LB FF RF
ANSI B16.5 300LB FF RF and so on

Motors for Pump:
Siemens China, Wannan, ABB China ( Furthermore, we can supply the motor brand as per customer request )
