> CN ANSI Process Pump
|

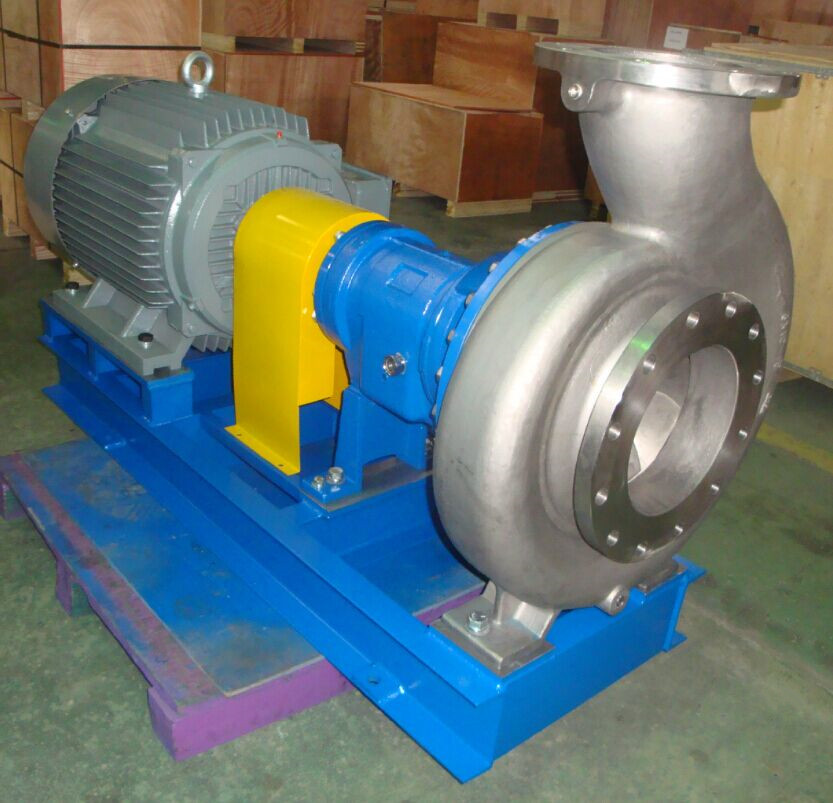

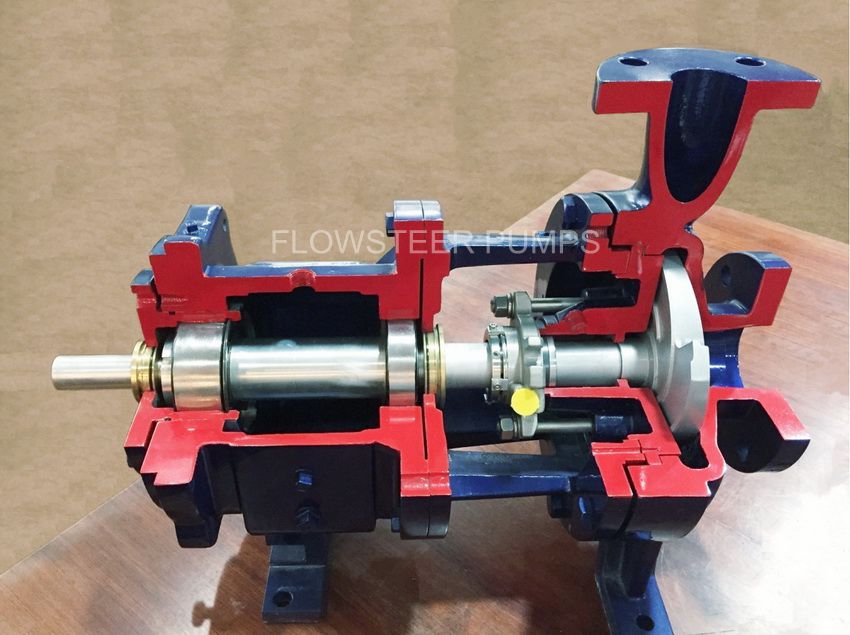

ASME B73.1 Chemical Process Pump
 |
ASME B73.1 Chemical Process Pump
CN series pump is ANSI B73.1 M standard chemical process pumps
CN series pump is fully interchangeable with Goulds 3196 series chemical process pumps
There are four frames, i.e S, M,L and XL
Carbon Steel, Cast Iron,304SS,316SS, CD4MCU ,Nickel and Hastelloy C material are available.
Technical data:
Pump size: 1"-10"
Capacity: up to 5800gpm
Head:up to 700ft
Advantages:
1. Comply with ANSI B73.1M standard
2. Open type of impellers
3. High efficient & energy saving
4. Wide operating range
5. Robust structure
6. Can be fitted with Single Mechanical Seal,Double Mechanical Seal and Cartridge Mechanical Seal
