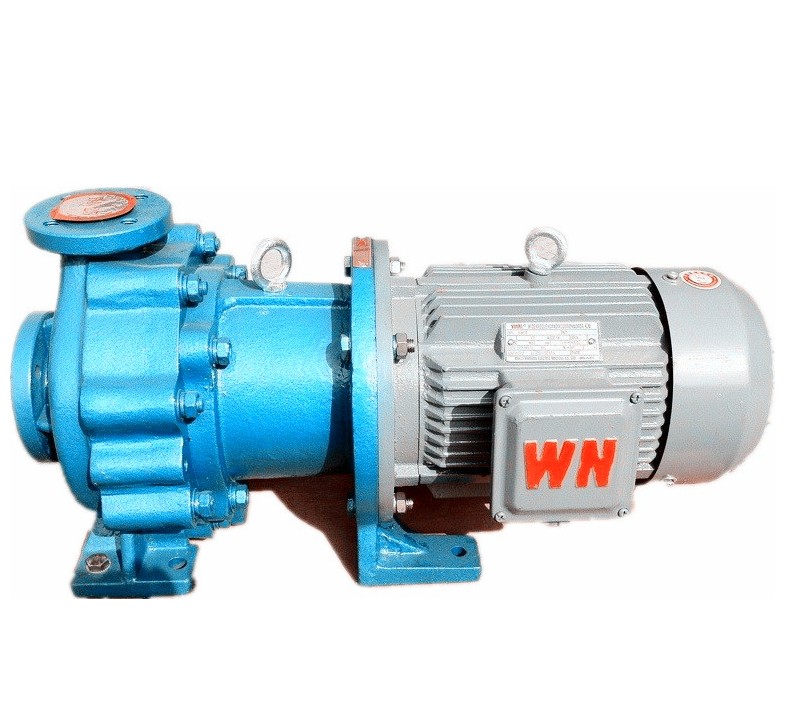

PFA Lined Magnetic Pump(dry-running design)
PFA lined magnetic pump is designed and manufactured accordingly to ISO 2858 standard.It is suitable for transporting acid, alkali and salt solution, strong oxidant, organic solvents,corrosive slurries,solvents,
hydrocarbons and other strong corrosive medium,especially for high temp corrosive liquids.PFA lined magnetic pump is suitable for liquids without solids.
High levels of durability and reliability:
PFA lined magnetic pump is manufactured to heavy-duty specifications for process use.This magnetic drive pumps can endure continuous operation over a long time under demanding conditions.
The main structural materials of the pump are reinforced with metal to improve mechanical strength.
Strong corrosion and heat resistance:
PFA lined magnetic pump is manufactured mainly in PFA and SiC.
Besides PFA lining,the standard type of lining is FEP(teflon). For information, the FEP material allows temperature of liquids (below 100˚C) to be handled.
Discharge capacity range:1 to 150m3/h
Head range:25 to 55 m / 38 to 80 m
Main materials:FEP, PFA
Required power range:up to 55 kW
Liquid temperature range:up to 120˚C
Sealing method:Seal-less construction
Fluid handling needs in a variety of OEM equipment
