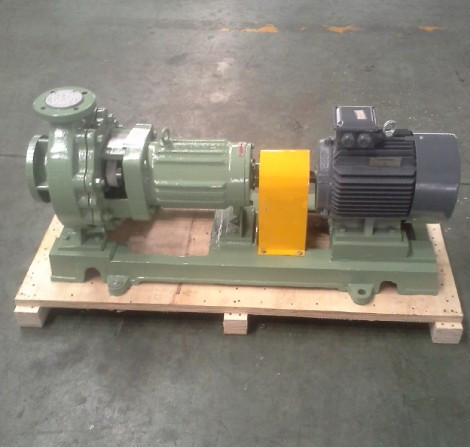

PTFE Lined Chemical Pump is suitable for transporting acid, alkali and salt solution, strong oxidant, organic solvents,corrosive slurries,solvents,hydrocarbons and other strong corrosive medium.If the medium is hydrofluoric acid or hydrobromic acid, it also can be used.The design of CHF chemical pump is conformity with ISO 2858 in respect of design,performance and dimensions.

Performance Data for 50/60hz Operation:
Capacity:up to 1200m3/h
Head:up to 100m
Motor Power:up to 220kw

Material:
PTFE(PFA and FEP for option)

Mechanical Seal:
Single or Double Mechanical Seal(SIC/SIC,SSIC/SSIC)

Flange Connection:
Standard Design to GB/T 9113 PN16
Alternatively:ANSI B16.5 150LB,DIN 2501 PN16

Service Temperature:
up to 120 Deg.c

Application:
Chemical industry
Water treatment
Surface treatment
Fertilizer industry
Fine chemical
Sea water
