T Self-priming Pump

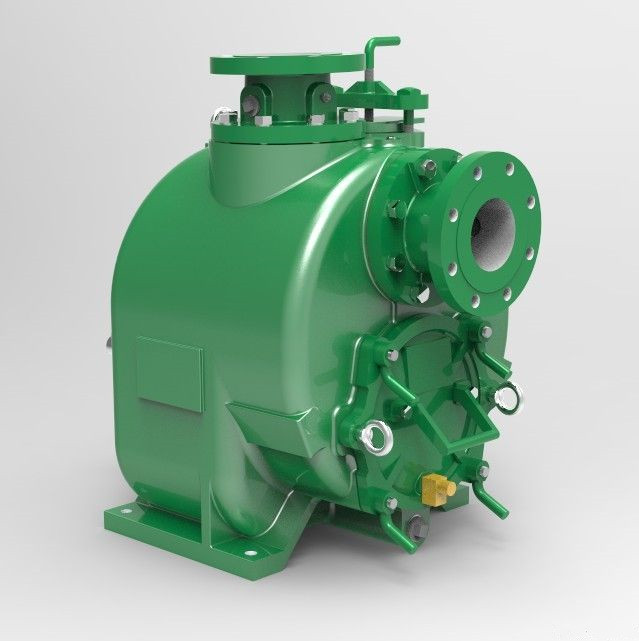

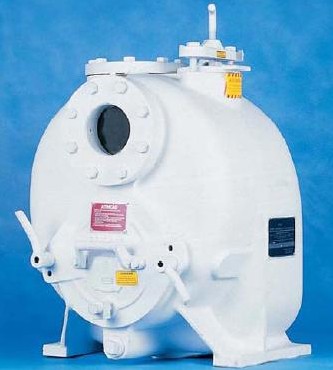

T type Self-priming Pump

T type Self-Priming pump units are available for Solids Handling or Clear Liquid service. Typical mounting configurations are Engine Driven for Skid or Trailer Mounted packages and Frame Mounted Electric Driven. Pumps also are available in a variety of different metallurgies.

1) Main Character

1.Beautiful shape and fine structure,reliable performance.

2.With strong capacity of delf priming, no need to equip with flap valve.

3.Non-clog, and with powerful capacity of passing big solid..

4.The hole can make sure that stronger sewage can be cleaned quickly when pump is jammed.

5.The unique lubrication oil mechanical seal cavity makes the performance more reliable.

6.Special check valve structure can make the pump working quickly.

7. When working, the gas and liquid works together .

8. Low rotary speed,reliable operation,long time usage, easy to maintenance.

9.Advanced pressure protector make pump the pump work safe.

2) Application Area

1. Municipal project, sewage project, instruction project.

2.Uptown,hospital, hotel sewage transportation.

3.Classification of municipal sewage factory treatment and concentrate system engineering.

4. Factory and contaminated water delivery.

3) Industries Served

♦ Construction

♦ Industrial

♦ Municipal

♦ Agricultural

♦ Mining

♦ Dewatering

♦ Industrial Waste

♦ Sewage

♦ Oil Field

♦ Petrochemical

♦ Paper Mills

♦ Processing

4)Parameter

1.Inlet/Outlet 2''(50mm), 3''(75mm), 4''(100mm), 6''(150mm), 8''(200mm), 10''(250mm), 12''(300mm)

2.Impeller Diameter:158.74mm-457.2mm

3.Rotary Speed:550RPM-2150 RPM

4.Flow Rates:8m3/h-1275m3/h;20GPM-5500GPM

5.Head:6m-63m

6.Horsepower:1HP-125HP

7.N.W:92KG-998KG

8.G.W:114KG-1066KG

9.Solid Passing:20.63mm-76.2mm

10.Material:Cast Iron, ADI, CD4MCU, 316 SS, Alloy 20, C276.

11.Diesel Driving:Water cooled or air cooled

12.Method of Connection Self-priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted.

13.Drive Variation:Cummins, Deutz, Ricardo, Perkins or Chinese Diesel, Electric Motor

14.Skid Mounted on Trailer:2 or 4 wheels Trailer/Trailor,Cart

15.Package:Exporting plywood case

16.Certification:CE , ISO9001:2000

5) Mounting Configuration

♦ Frame Mounted

♦Base Mounted Electric Driven

♦ Engine Driven SAE Mounted

♦ Engine Driven Skid or Trailer Packages

♦ Horizontal or Vertical V-Belt Driven
