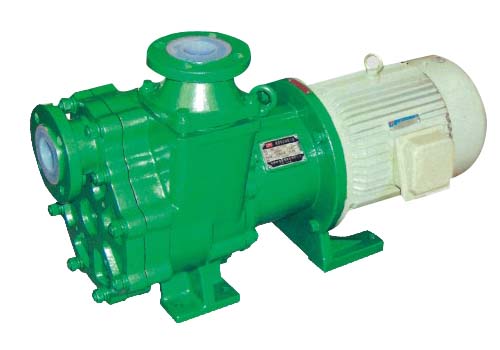

SMD Self-priming Magnetic Pump

SMD Self-priming Magnetic Pump

SMD self-priming magnetic pump,SMD series is designed and manufactured as per ISO2858.The suction head of pump can be 6m.SMD self-priming magnetic pump is the best solution to replace the vertical submerged pump.

High levels of durability and reliability:
SMD magnetic pump is manufactured to heavy-duty specifications for process use.SMD series self-priming magnetic pump can endure continuous operation over a long time under demanding conditions.

The main structural materials of the pump are reinforced with metal to improve mechanical strength.

Strong corrosion and heat resistance:

These pumps are manufactured mainly from fluororesin and SiC.

Three standard types of fluororesins are used: FEP and PFA. Especially, the PFA type allows high-temperature liquids (up to 120˚C) to be handled.

EL-grade chemicals can also be handled.

Specifications (50/60Hz):

Discharge capacity range:1 to 150m3/h

Head range:25 to 55 m / 38 to 80 m
Suction Head:3-4 m

Main materials:FEP, PFA

Required power range:up to 37 kW

Liquid temperature range:up to 120˚C

Sealing method:Seal-less construction

Application:

Surface treatment

Water treatment

Chemical processing

Food processing

Fluid handling needs in a variety of OEM equipment
