 Products > Magnetic Pump > CQB Magnetic Pump

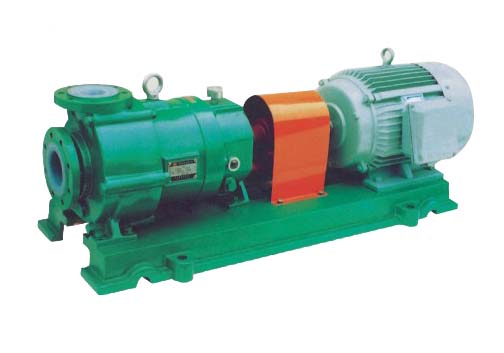

CQB Magnetic Pump
CQB Magnetic Pump | ISO2858 | Close-coupled type
CQB magnetic pump is designed and manufactured accordingly to ISO 2858 standard.It is suitable for transporting acid, alkali and salt solution, strong oxidant, organic solvents,corrosive slurries,solvents,
hydrocarbons and other strong corrosive medium,especially for high temp corrosive liquids.

High levels of durability and reliability:
CQB magnetic pump is manufactured to heavy-duty specifications for process use.This magnetic drive pumps can endure continuous operation over a long time under demanding conditions.
The main structural materials of the pump are reinforced with cast iron to improve mechanical strength.

Strong corrosion and heat resistance:
These pumps are manufactured mainly from fluororesin and SiC.
Three standard types of fluororesins are used: FEP and PFA. Especially, the PFA type allows high-temperature liquids (up to 120˚C) to be handled.
EL-grade chemicals can also be handled.

Specifications (50/60Hz):
Capacity range:0.5 to 120m3/h
Head range:2 to 55 m / 3 to 80 m
Main materials:FEP, PFA
Required power range:up to 55 kW
Liquid temperature range:up to 120˚C
Sealing method:Seal-less construction

Application:
Surface treatment
Water treatment
Chemical processing
Food processing
Fluid handling needs in a variety of OEM equipment

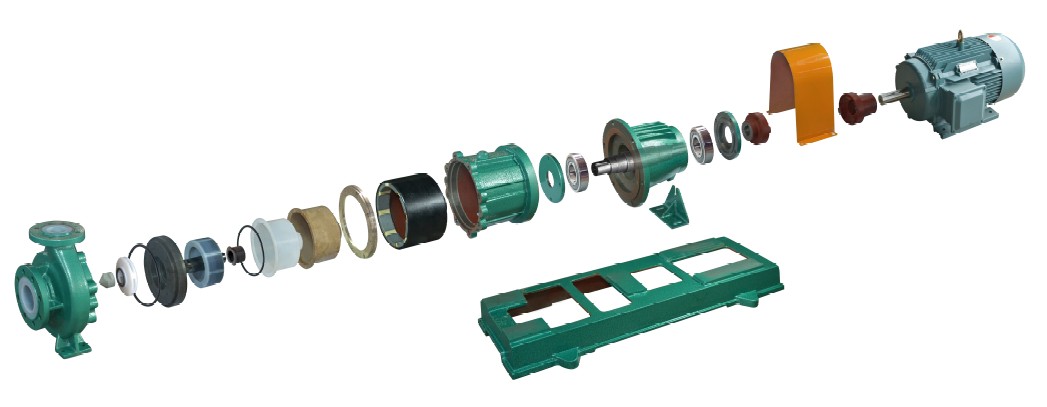

Explosion View:
