 Products > Vertical Centrifugal Pump > HY Vertical Chemical Pump

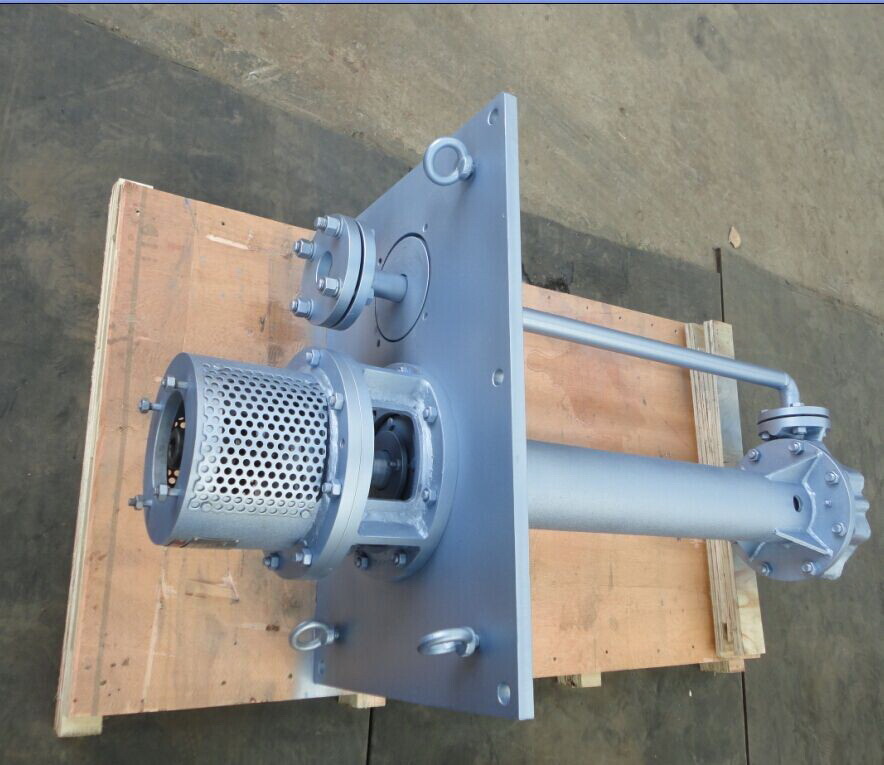

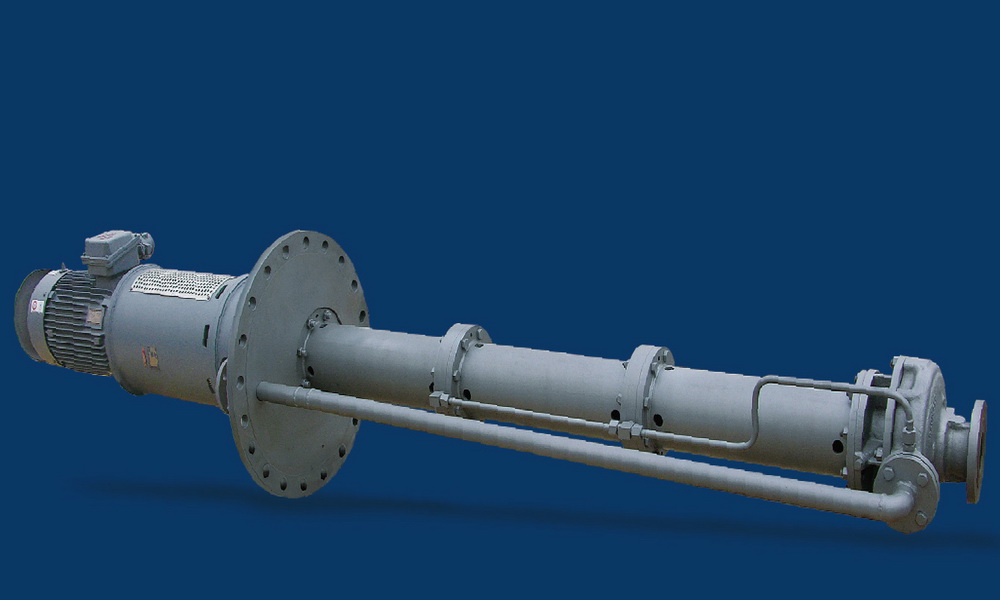

HY (SCCY) Vertical Sump Pump
HY(SCCY) Vertical Sump Pump
It is applicable to transfer virtually all chemicals, acids, alkalies, corrosive slurries, solvents, hydrocarbons etc.It is also suitable for conveying sludge containing large particles and abrasive media.

Technical Details:
Capacity:up to 800m3/h
Head: up to 60M.
Minimum Temp : -30°C
Maximum Temp : 120°C
Operating Speed : 2900rpm,1450rpm.
The Shaft is supported from its upper end by a grease lubricated roller bearing.
Vertical pumps are single stage, single suction. Close Impeller, Semi-Open Impeller with dynamic balance can be offered.
SIC Bush & Stainless Steel Shaft Sleeve for good performance. A lubrication System is also Provided.
Any Standard single Mechanical seal can be offered.


Application:
Transferring Media like Corrosive acids, Alkalies, Solvent, Oil, Sulphuric acid. Oleum, Sludges, Slurries, Ammonia, Caustic lye.
Toluene, Nitric acid, Molasses, Nitro-Benzene, Methaline, Xylene.
Refineries, Fertilizer Plant, Petrochemical and Chemical.
Industries like chemical. Petrochemical, Refinery and Fertilizer.
