Horizontal Centrifugal Pump
> FA Centrifugal Pump
|
DIN24255 Centrifugal Pump
 |

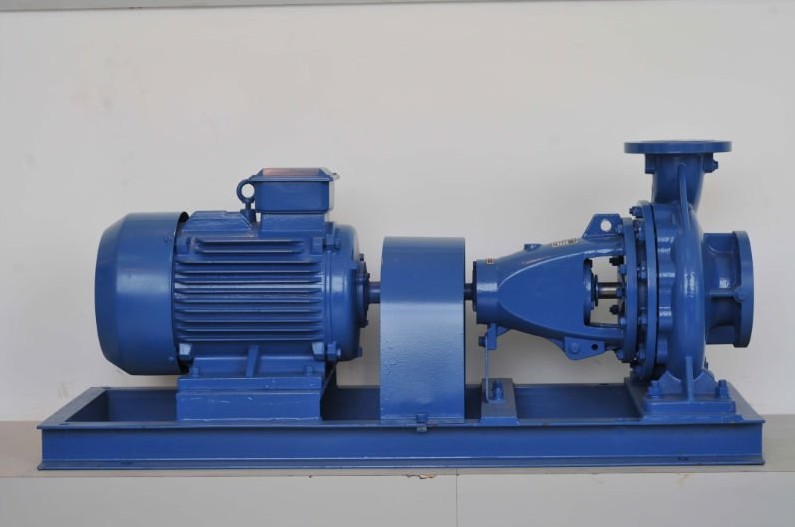

FA Horizontal Centrifugal Pump
Flowsteer FA series end suction centrifugal pump completed sets are designed with technical benefits to meet the needs of users in a variety of city water supply, fire fighting, irrigation, and cooling applications.
Flowsteer FA series end suction centrifugal pump completed sets are designed with technical benefits to meet the needs of users in a variety of city water supply, fire fighting, irrigation, and cooling applications.
Design & Material:
Design:BS EN733/DIN24255
Structure:Horizontal,Axial End-Suction,Single-Stage,Single-Suction,Volute Casing,Back pull-out
Size:DN32 - 250
Flange:DIN2501 standard,ANSI B16.5 150lb optional
Casing:Cast Iron standard,Ductile Iron,Stainless Steel optional
Impeller:Bronze standard,Cast Iron,Stainless Steel optional
Shaft:ASTM420standard, ASTM304, ASTM316, ASTM1045 optional
Shaft Seal:Mechanical Seal Standard, Gland Packing optional
Operating Data:
Flow Rate(Q):2-1100 m3/h
Head(H):2-152m
Speed:1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
Temperature:-10 Celsius to 105 Celsius
Working Pressure:1.2 MPa standard, 1.6 MPa on request
Applications:
Heating, ventilation and air-conditioning
Fire Protection and Fire Fighting
Water circulation
Liquid transfer
Irrigation
Cooling
Booster service
