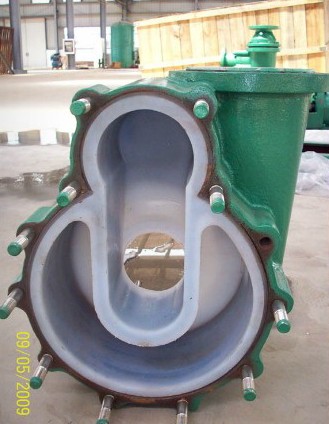

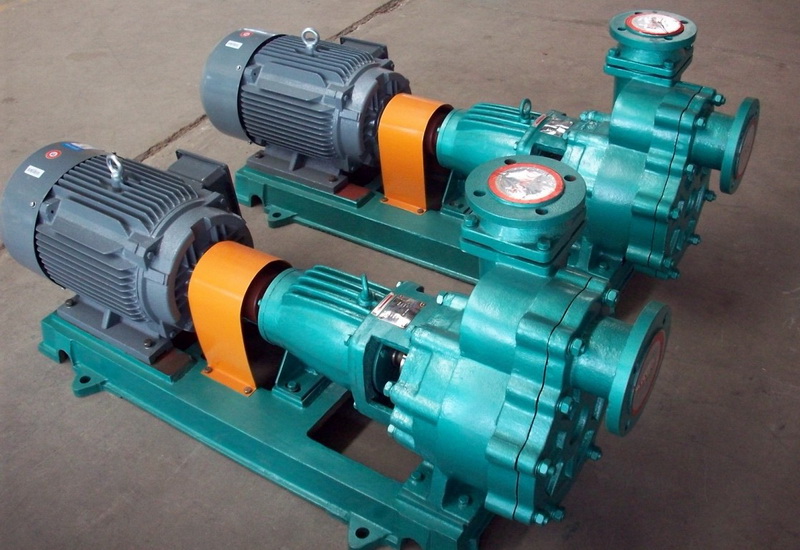

This pump is a single-stage single-suction anticorrosive centrifugal pump sucking from axial direction. The pump body liner, pump cover liner, piper lining and bearing bush are all produced from fluoroplastics by one-time mould pressing.
Manufacture&Design Standard:
ISO2858
Applied Range:
• Refineries,petrochemical industry, coal processing and low temperature engineering
• Chemical industry,fiber and general processing industries, particularly in paper and pulp industries, sugar industry and clean water applications, particularly seawater desalination plants
• Heating and air-conditioning
• Fossil power stations
• Environmental protection
• Engineering and in automotive industries
• Marine and offshore applications
Material Available:
FEP,PFA,PTFE
Operating Range:
Capacity :Up To 120 M3/Hr.
Head:Up To 50 Mtr.
Self-priming Height Max.:4M
Pump Sizes:DN25 mm to 100 mm.
Speed:1450/2900rpm at 50 Hz
Temperature:120 DEG.C
|
|
|
