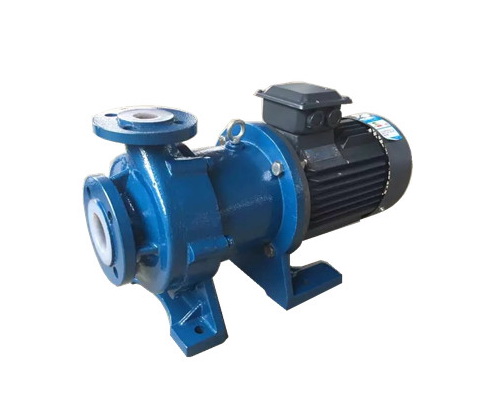

PFA Lined Magnetic Drive Centrifugal Pump | MD Type PFA Lined Magnetic Drive Centrifugal Pump,MD Type is designed as per ISO2858 standard to handle all chemicals and corrosive liquids. However magnetic pump cannt work for liquid with many solids. This pump is suitable for clean liquid. MD type Magnetic Drive Pump has heavy-duty type like the mechanical seal type centrifugal pump also. Therefore this kind of magnetic drive pump has a wide range of working point and this pump can be operated continuously. The main structural materials of the pump are reinforced with cast iron. The purpose is to improve mechanical strength.
Magnet drive designs have become the standard for applications requiring corrosion resistant pumps. Our magnetic drive pump designs offer a wide range of capabilities. Ranges are from compact size to our large size chemical process pump series. This broad range of magnetic drive pump capabilities is unmatched in the industry making us the leader in magnet drive pump technology home and abroad.
Strong corrosion and heat resistance: Our MD type PFA lined magnetic drive centrifugal pump is made mainly in PFA(Teflon), PTFE based resin, SIC, SSiC and so on. Main wetted parts for options: PTFE, FEP and PFA. Especially, the PFA allows high temperature liquids (up to 120˚C). FEP working temp: -20 deg.c-100 deg.c PFA working temp: -20deg.c-120deg.c PTFE working temp: -20deg.c-120deg.c
Specifications (50/60Hz): Discharge capacity range: 1 to 150m3/h Head range: 25 to 55 m / 38 to 80 m Main materials: FEP, PFA, PTFE Required power range: up to 55 kW Liquid temperature range: up to 120˚C Sealing method: Seal-less construction
Impeller Type: Close type Designed and Manufactured Standard: ISO2858 Flanges Standard: DIN 2501 PN16 ANSI B16.5 150LB and so on Application: Water treatment Chemical processing Food processing Fluid handling needs and so on
Motors for Pump: Siemens China, Wannan China, ABB China ( Furthermore, we can supply the motor as per customer request ) NEMA and IEC motors are available
