 Products > ANSI Process Pump

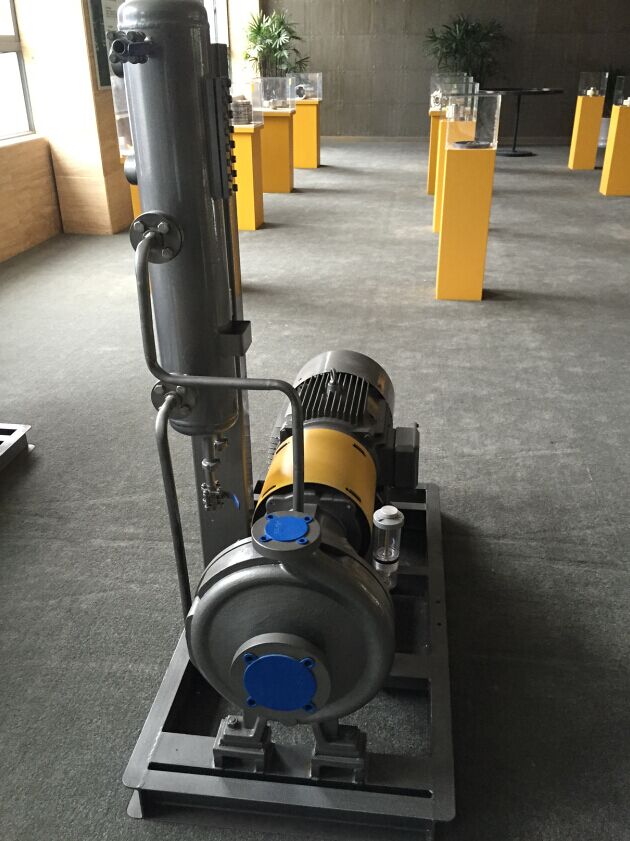

Goulds 3196 ANSI Pump
Goulds 3196 ANSI Pump

FLOWSTEER CN Series ANSI chemical process pumps are designed to handle corrosive fluid handling applications. These process pumps are supplied with open impeller and used for heavy duty applications as per industry standard ANSI B73.1. ANSI chemical pump series has wide range of sizes. CN series ANSI pumps offers aesthetic look and better efficiency.
Pump type and description

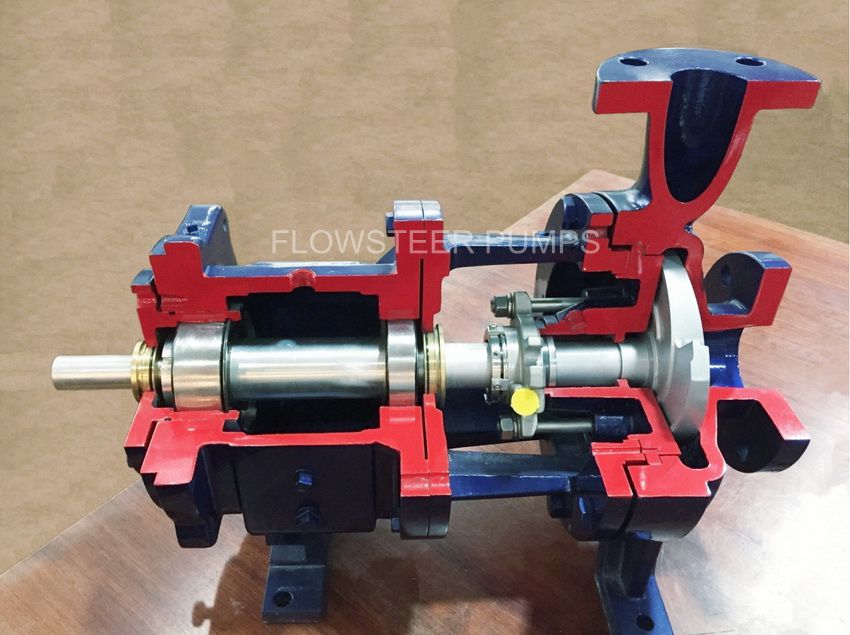

ANSI chemical process pumps of CN series possess volute casing, centerline top discharge, foot mounted, single stage, back pull-out design, full open impeller and external adjustment to maintain performance. These pumps are designed to meet ANSI/ASME B73.1 standards for chemical process pumps by incorporating the latest technology to satisfy the most stringent requirements of the industry.
ANSI pumps have a wide range of pump sizes and their parts are interchangeable within particular frame sizes. Stuffing box cover is available in small bore,standard bore and big bore sizes to accommodate different fluid application. Mechanical seal is installed in stuffing box cover to restrict fluid to leak from the pump.

Specifications:
1.Capacity: 7000 GPM
2.Horse Power: 250HP
3.Head: Up to 650 feet
4.Pressure: Up to 300 PSI

Applications:
Pumps are ANSI centrifugal end suction frame mounted pumps, designed for pumping corrosive fluid handling applications. The pumps are semi-open and designs for heavy duty application.
1.Petrochemical
2.Paint
3.Refineries
4.Oil and Gas
5.Hot Oil
6.Ethanol Plant
7.Food Plant
8.Sugar Industries
9.Pharmaceuticals
10.Effluent Treatment Plant
11.Waste and water treatment Plant
