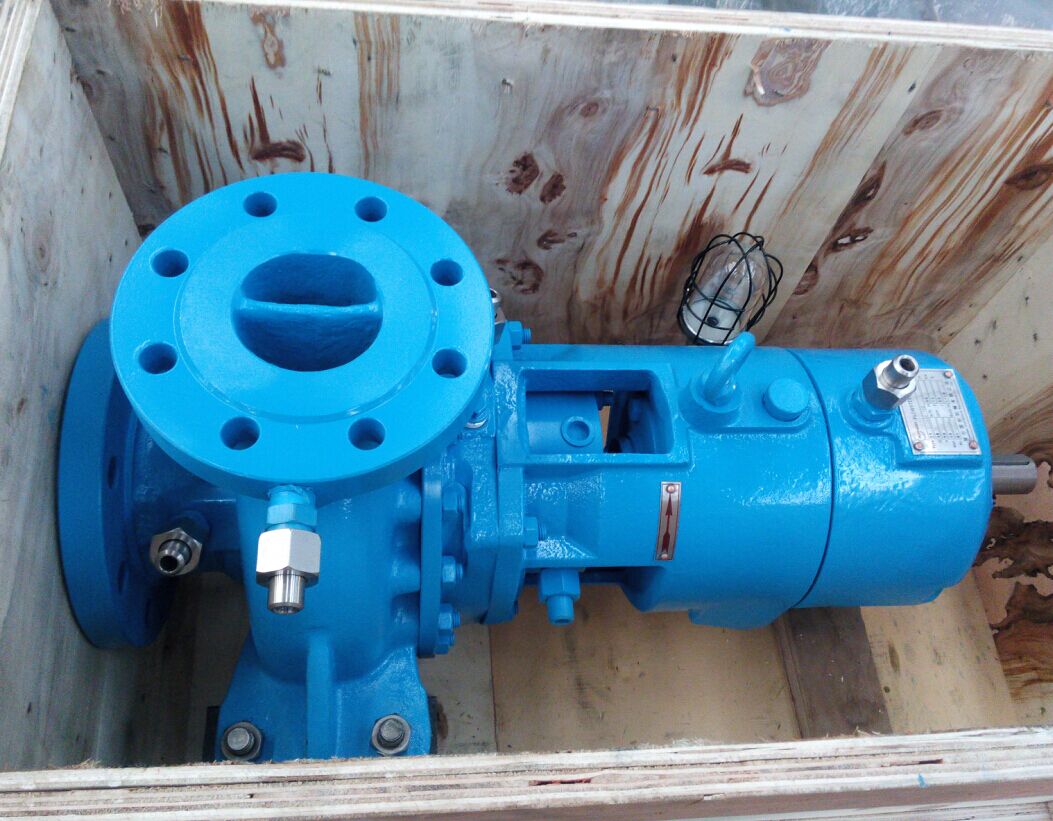

Petrochemical process pump, SLZA type is designed and manufactured in accordance with API610, VDMA24297 and GB/T3215-82.SLZA type API process pump can be used to transport acid solutions of various temperatures and concentrations,alkaline solutions of various liquid petrochemical products,organic chemical compounds and other corrosive liquids.
Flowsteer's SLZA type API petrochemical process pump has become the standard for applications requiring corrosion resistant pumps. Our API process pump designs offer a wide range of capabilities. Ranges are from small size configurations to our large size chemical process pump series. Therefore, this broad range of API process pump capabilities is unmatched in the industry making us the leader in API process pump technology home and abroad.
Applications: oil refinery chemical and petrochemical industry coal process industry paper and pulp plant sugar refinery plant water treatment sea water desalt plant power plant
steel mills process industry and so on
Specifications and Performance Parameters: Size: DN 25-400 mm Flow: Q≤2400 m3/h Head: H≤300 m Working pressure P≤2.5 Mpa ( It has to be set forth in advance and noted in the contract in case of a pressure higher than 2.5Mpa ) Working temp: T:-80 deg.c – 450 deg.c
Material Available: WCB SS304(L) SS316(L) Alloy 20 Titanium (TA2) CD4MCu Nickel 201 Hastelloy B&C and so on
Mechanical Seal Type: Single Mechanical Seal Double Mechanical Seal
Impeller Type: Close, Semi-open and Open type
Designed and Manufactured Standard: API610 OH1 and API610 OH2
Flanges Standard: DIN2501 PN25 ANSI B16.5 300LB
Motors for Pump: Siemens, Wannan China, ABB NEMA and IEC standard motors for option
